All stock codes associated to this product
CS9000001AU, CS-9000001-AU, CS9000001AU(BLDGMB), CS-9000001-AU(BLDG-MB)
Overview
The Bulldog kit condenses high-end desktop performance and the ability to
game in 4K and VR into a form factor fit for your living room. Supporting liquid
cooling for both the processor and graphics card, Bulldog lets you maximize
performance without adding noise, delivering a best in class living room gaming
experience.
LEAVE YOUR LIVING ROOM BEHIND
Bulldog is primed for VR, bringing the ultimate in immersive gaming to your
living room. Our compact, high performance system can be placed into any room in
the house, and its both quiet and powerful enough to provide you with a truly
immersive VR environment.

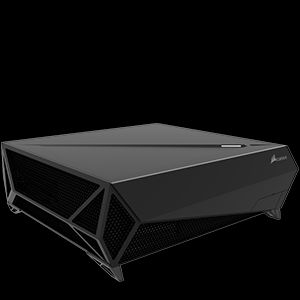

BULLDOG CHASSIS
A highly ventilated, stylish compact console, created for the living room.
Carefully designed airflow and spacing for powerful full-length graphics
cards.
HYDRO SERIES H5 SF COOLER
Designed for Bulldogs special small form factor. Quietly cools even the
fastest Intel/AMD CPUs, so overclock away.
SF600 POWER SUPPLY
Easily power top-end GPUs with 600 watts of 80 PLUS® Gold Level in an
industry-standard SFX form factor. SF600 runs amazingly cool, and unexpectedly
quiet.
LIQUID COOLED GRAPHICS CARD
Maximize performance with minimal noise: install a Bulldog-ready Hydro GFX
liquid cooled graphics card from Corsair and MSI, opt for AMDs powerful Radeon
R9 Fury X, or roll your own card by adding liquid cooling with CORSAIRs HG10
adapter/heatsink and H55 liquid cooler.
(Sold Separately)
6TH GENERATION INTEL® CORE™ Z170N MOTHERBOARD
Built for Intel® 6th Generation Core™ processors, overclock-ready with DDR4
support and high bandwidth built-in 802.11ac wi-fi.
Contents and Specifications
Package contents
-
Bulldog
Chassis
-
Hydro
Series H5 SF CPU Liquid Cooler
-
SF600
600-Watt 80 Plus Gold Power Supply
-
Gigabyte
Z170N-WiFi Motherboard
Compatibility
-
Motherboard:
Mini-ITX (Gigabyte Z170N-WiFi motherboard included.)
-
Power
Supply: SFX12V Only (SF600 600-Watt 80 Plus Gold SFX12V power supply
included)
-
Recommended
Graphics Cards: CORSAIR Hydro GFX, AMD Radeon R9 Fury X, MSI Sea Hawk, any
card equipped with CORSAIR HG10 bracket and Hydro Series H55
cooler
Specifications
|
Warranty |
: |
12 Month |
|
Weight |
: |
5
kg |
|
Color |
: |
Black |
|
Case Form
Factor |
: |
Mini-ITX SFF
Chassis |
|
Dimensions |
: |
381mm x 457mm x
133mm |
|
Case Motherboard
Support |
: |
Mini-ITX (Gigabyte
Z170N-WiFi motherboard included.) |
|
Maximum GPU
Length |
: |
300mm |
|
Maximum CPU Cooler
Height |
: |
90mm |
|
Maximum PSU
Length |
: |
190mm |
|
Case Expansion
Slots |
: |
2 |
|
Case Drive
Bays |
: |
(x1) 2.5", (x1) 3.5" or
(x3) 2.5" |
|
Case
Material |
: |
Steel |
|
Case Power
Supply |
: |
SFX12V Only (SF600
600-Watt 80 Plus Gold SFX12V power supply included) |
|
External
Connections |
: |
(x2) USB
3.0 |
|
: |
(x1) Headphone
Port |
|
: |
(x1) Microphone
Port |
|
Fan Mount
Locations |
: |
(x2)
92mm |
|
: |
(x1)
120mm |
|
Fans
Included |
: |
(x2)
92mm |
|
Radiator Mount
Locations |
: |
Bottom:
120mm |
|
Compatible Corsair
Liquid Coolers |
: |
H5 SF, H55, H60, H75
(Hydro Series H5 SF cooler
included) |
